ULC / UL Code-Rated
BC Commercial Fire Shutters
Rolling fire shutters specified to BC Building Code fire-separation requirements: ULC-S104 / NFPA 252 tested, NFPA 80 inspection-ready, installed by Five Eight Twelve across Vancouver and British Columbia.
A code-driven product, supplied to the rating your project requires.
Fire shutters are installed when the BC Building Code or applicable NFPA standards require a fire-rated barrier in an opening that operationally needs to remain clear during normal hours. This is a code-required fire separation, not a discretionary upgrade.
Five Eight Twelve specifies, installs, and provides NFPA 80 annual drop-test service for ULC/UL labeled rolling fire shutters across commercial, healthcare, industrial, and institutional buildings throughout Vancouver and British Columbia. We coordinate the documentation, shop drawings, and AHJ submissions that demonstrate compliance for tender review or building-permit approval.
What a code-compliant fire shutter includes
ULC / UL Labeled Rating
Tested and listed to ULC-S104 (Canada) or UL 10B / NFPA 252 (US, accepted by some BC AHJs). Specified at 45, 60, 90, 180, or 240 minutes based on the BC Building Code fire-resistance rating of the assembly being protected.
Automatic Descent on Alarm or Heat
Hard-wired to the building's fire alarm panel for automatic closure on alarm activation, or backed up with a UL-listed fusible link that releases the shutter when ambient temperature exceeds the rated threshold. Viscous governor prevents free-fall.
Optional S-Label Smoke Sealing
UL S-Label assemblies add edge gasketing and head/jamb seals to limit smoke migration, typically required in egress corridors, healthcare compartments, and high-rise compartmentation under the BCBC.
NFPA 80 Annual Drop-Test Compliance
Fire-rated assemblies require annual drop-test inspection per NFPA 80 to remain compliant. We provide the inspection, documentation, and reset service that keeps your code rating and your insurance current.
BC Code-Driven Applications
Where BC commercial buildings need fire shutters
The BC Building Code requires fire separations in many commercial situations. Fire shutters satisfy the separation requirement where a fixed door or wall would interfere with daily operation. The most common applications we install:
Retail Compartmentalization
Large openings between sprinklered and non-sprinklered zones in stores and anchor tenants. Code requires the boundary to close on alarm without obstructing daily merchandising flow.
Mall Corridor Separations
Fire compartments at corridor intersections where daily operation needs the opening clear. Shutters descend on alarm activation to maintain compartmentation per BCBC.
Healthcare & Care Facility Corridors
Hospitals and long-term care facilities specify fire shutters at unit and ward boundaries where BCBC mandates fire separation but operations require open passage.
Industrial & Warehouse Openings
Manufacturing and distribution facilities require fire shutters at openings between rated assemblies, typically separating high-hazard process areas from storage, offices, or egress paths.
Stage Proscenium Fire Curtains
Performing arts venues use fire curtains at the proscenium to separate stage and audience compartments, a specialized fire shutter category we coordinate with theatre consultants.
Kitchen & Servery Counter Shutters
Commercial kitchens and food-service serveries often require fire-rated counter shutters where the opening separates kitchen from dining areas under BCBC fire-separation provisions.
Standards reference
BC Building Code & standards we install to
Fire-separation requirements in BC are governed by the BC Building Code (BCBC), which adopts elements of the National Building Code of Canada. The required fire-resistance rating for any given opening is the responsibility of the architect or fire protection engineer of record. Our role is to supply and install a labeled assembly that meets that rating.
What determines your required rating
- ·Building classification (assembly, business, healthcare, mercantile, industrial)
- ·Size and height of the building
- ·Whether the assembly separates sprinklered from non-sprinklered space
- ·Whether the opening is in an egress path or fire-compartment boundary
- ·Whether smoke control (S-Label) is also required
Typical ratings: 45, 60, 90, 180, or 240 minutes. Confirm the specified rating with your project's fire protection engineer before placing the order.
Test standards we install to
Documentation we provide
ULC/UL label data, shop drawings, AHJ submission packages, and NFPA 80 drop-test certificates, coordinated for tender review or building-permit approval.
Specification baseline
How every fire shutter we install is built
Manufactured by Cornell Cookson, the North American industry standard for rolling fire-rated assemblies, with active UL and ULC labels in current force.
Fire-Rated Solutions
Dedicated protection for fire-separation walls and specialized service counters.

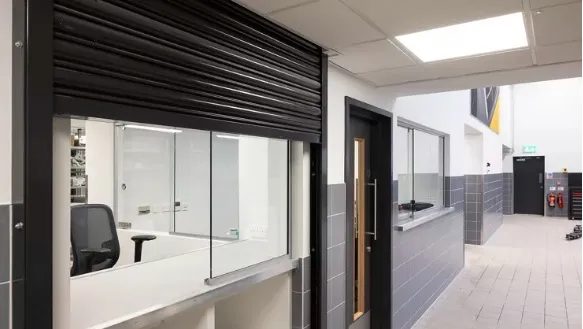

Standard Fire Shutter
UL-Rated
Compact Fire Shutter
Fire Protection

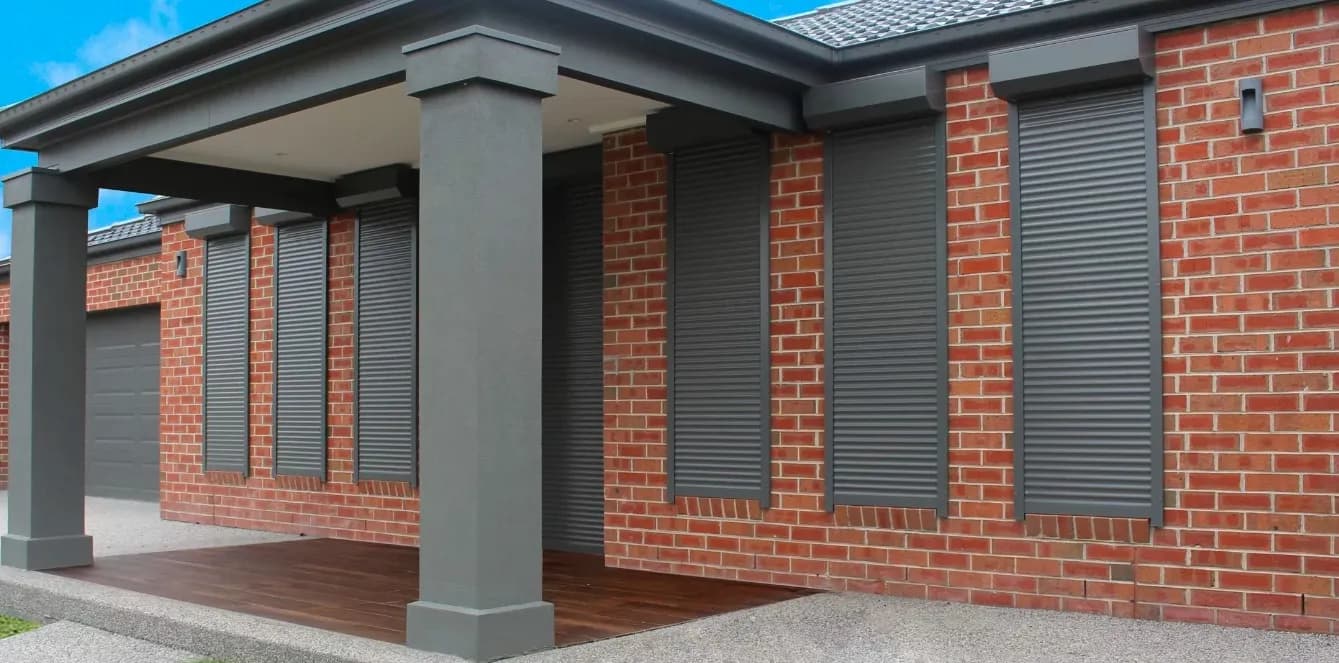

Industrial Fire Door
Heavy Duty

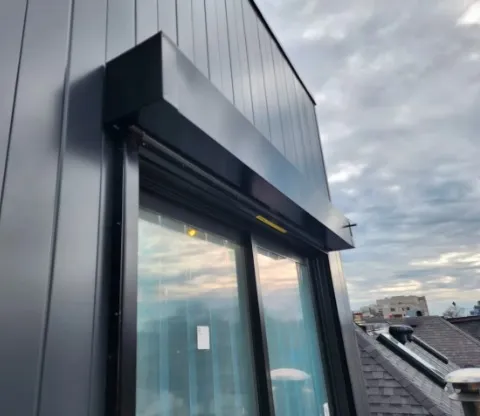

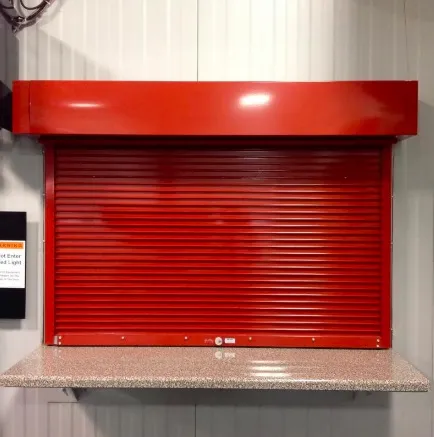

Counter Fire Shutter
Commercial
NFPA 80 Compliant
Certified

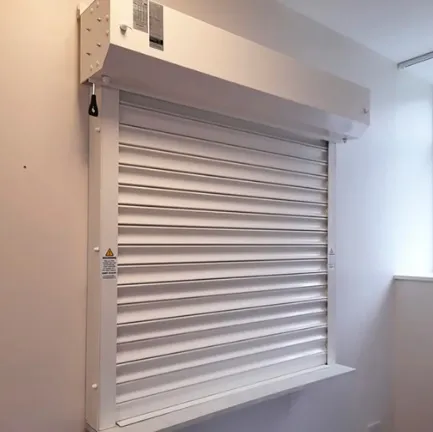

Automatic Release Solution
Life Safety
Emergency Containment
Fire Safety

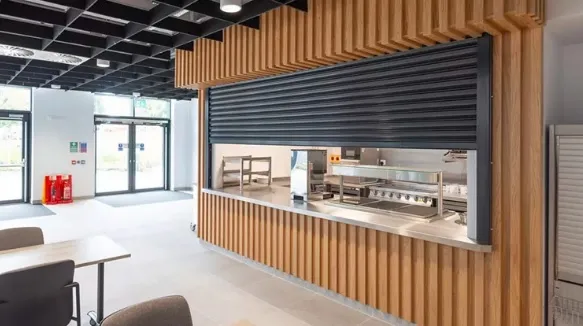

Service Fire Door
Industrial
Commercial Security Showcase
Proven retail and institutional security installations throughout the Lower Mainland.

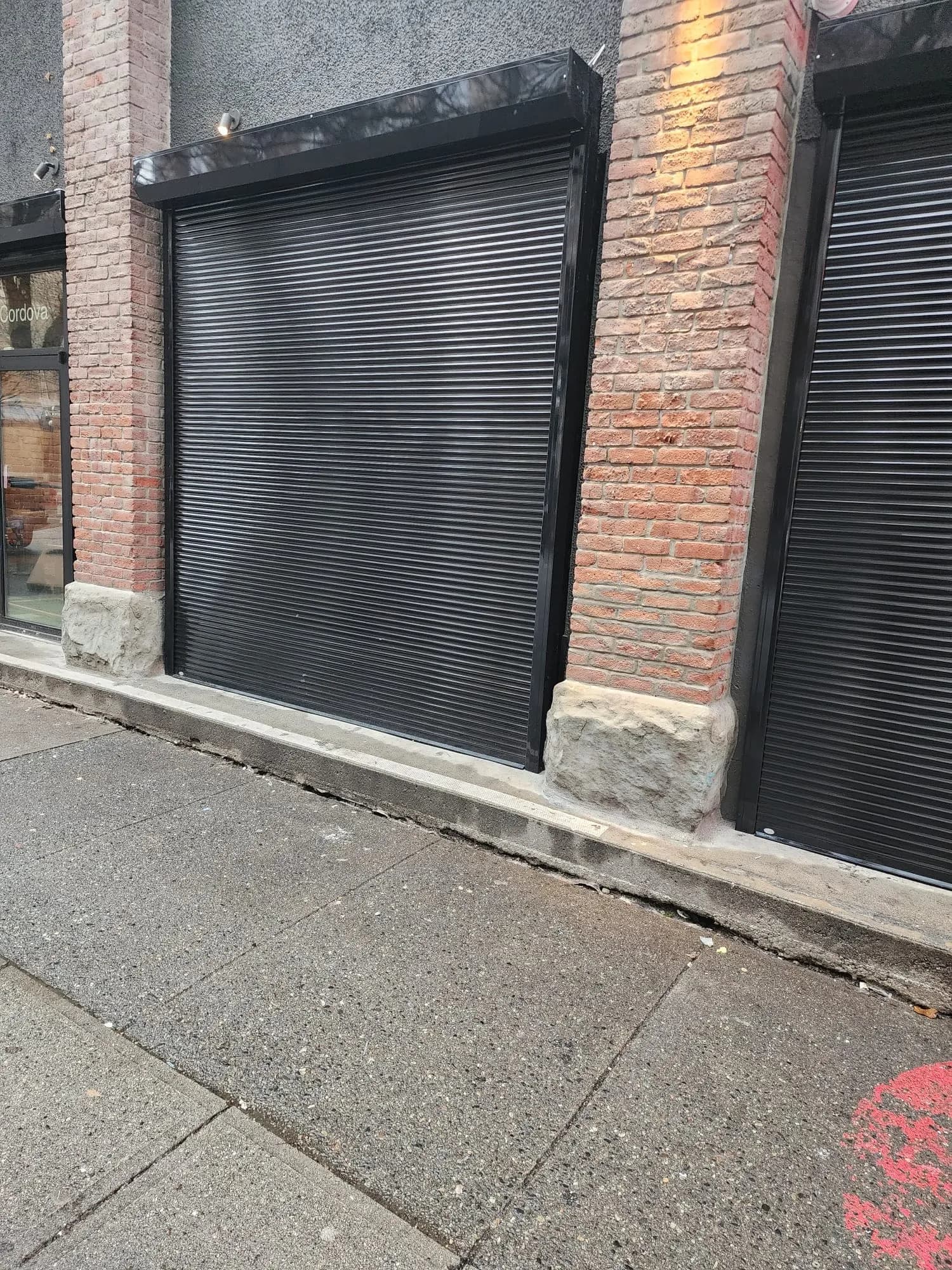

Vancouver Retail Security

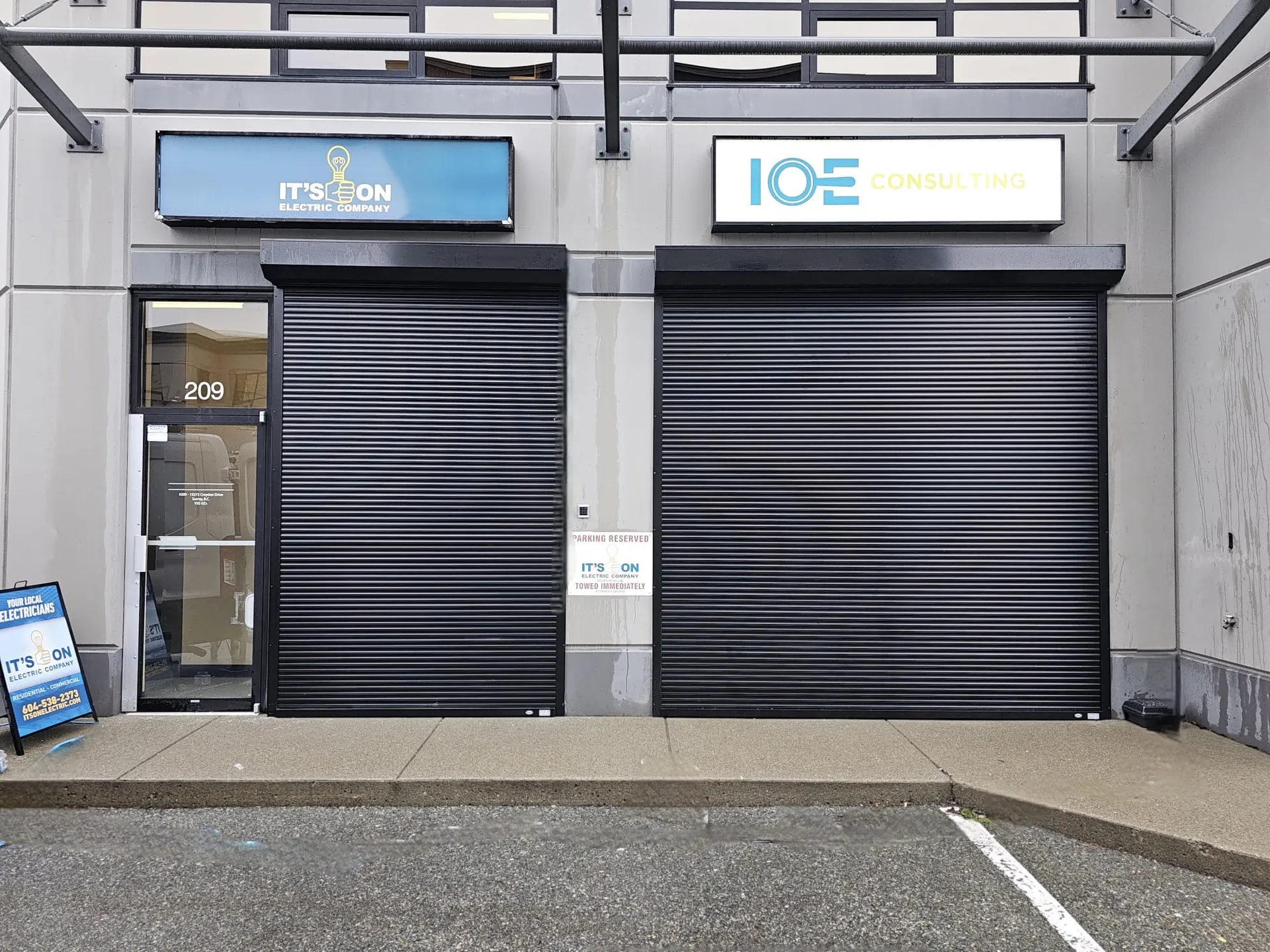

White Rock Protection

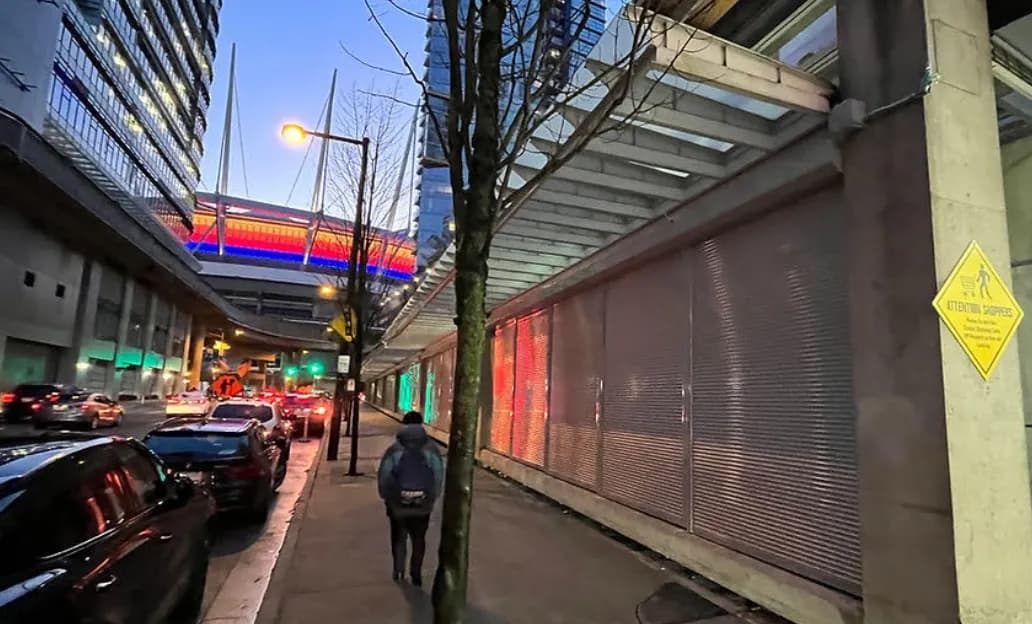

Costco Retail Security

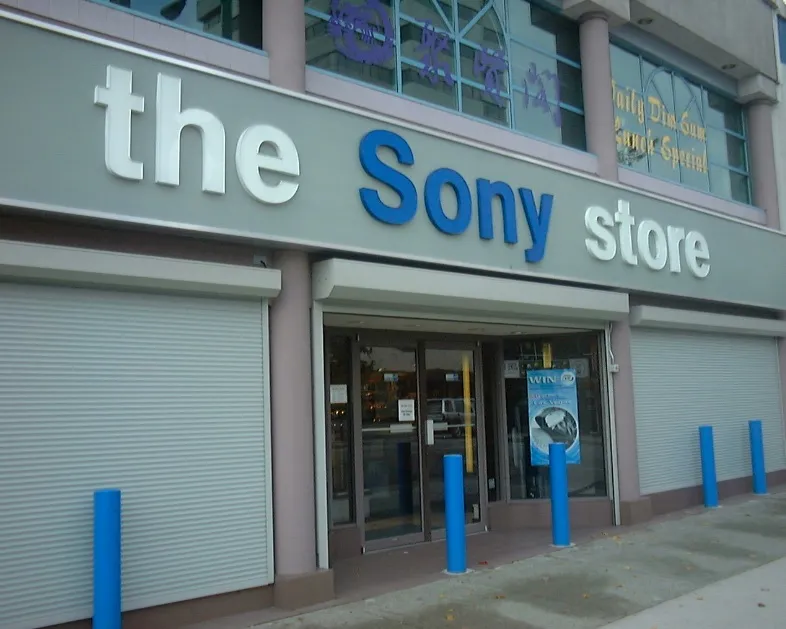

Main Street Security

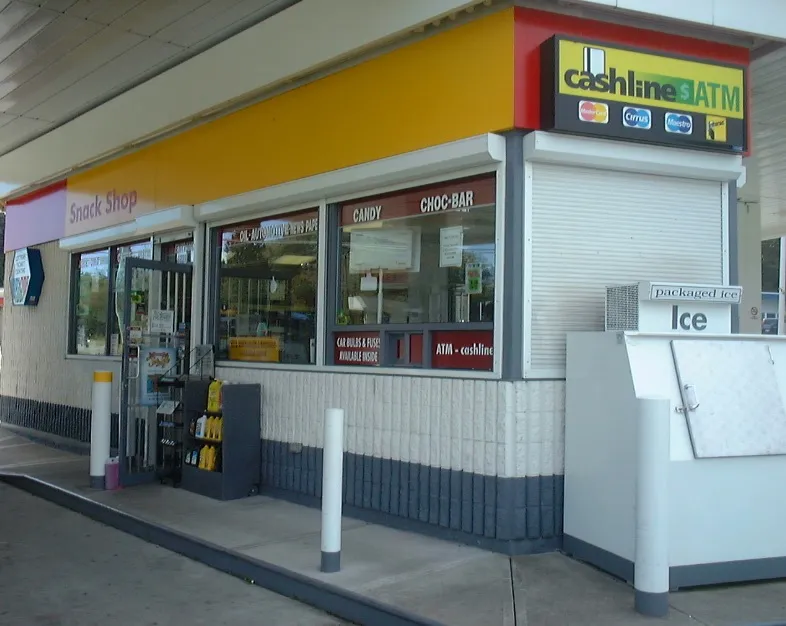

Service Station Protection

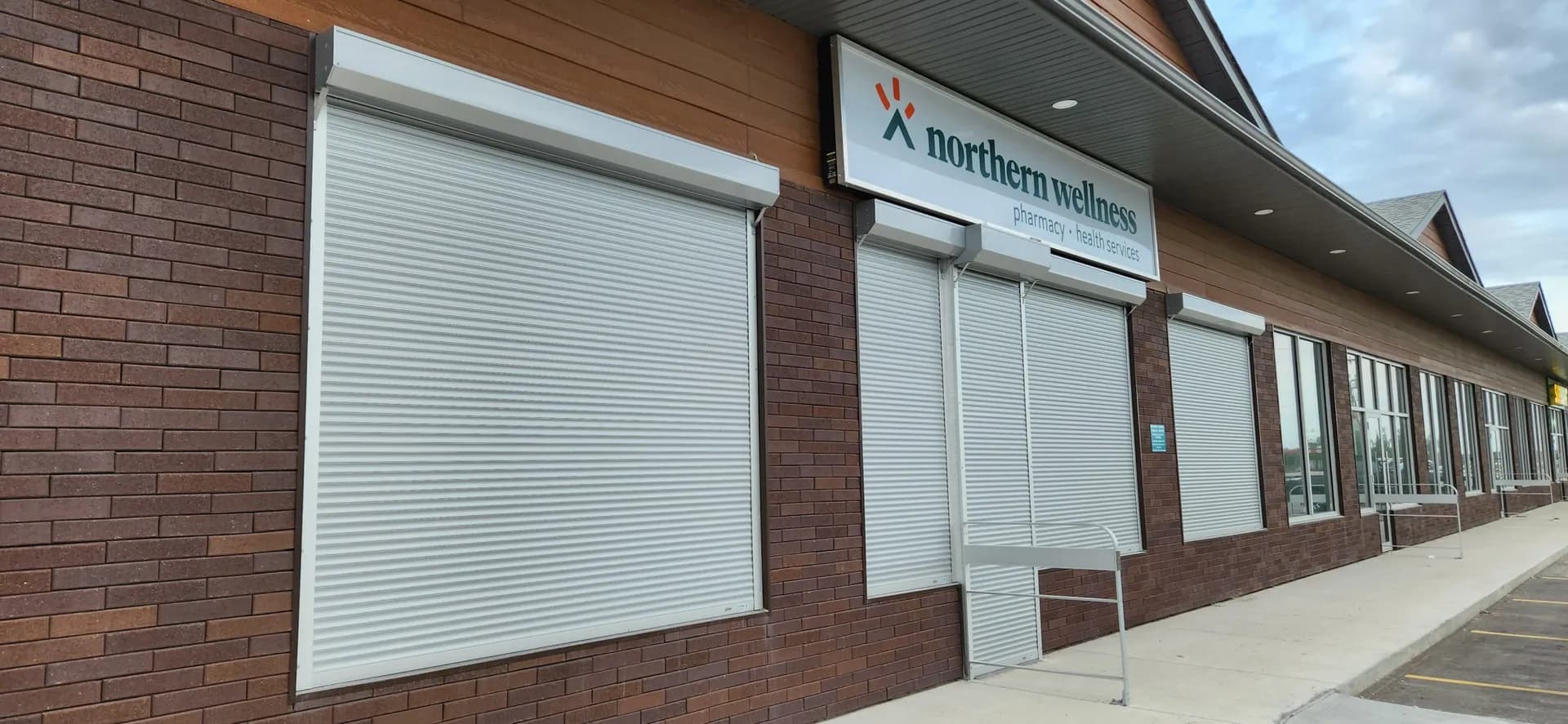

Commercial Facility Shield

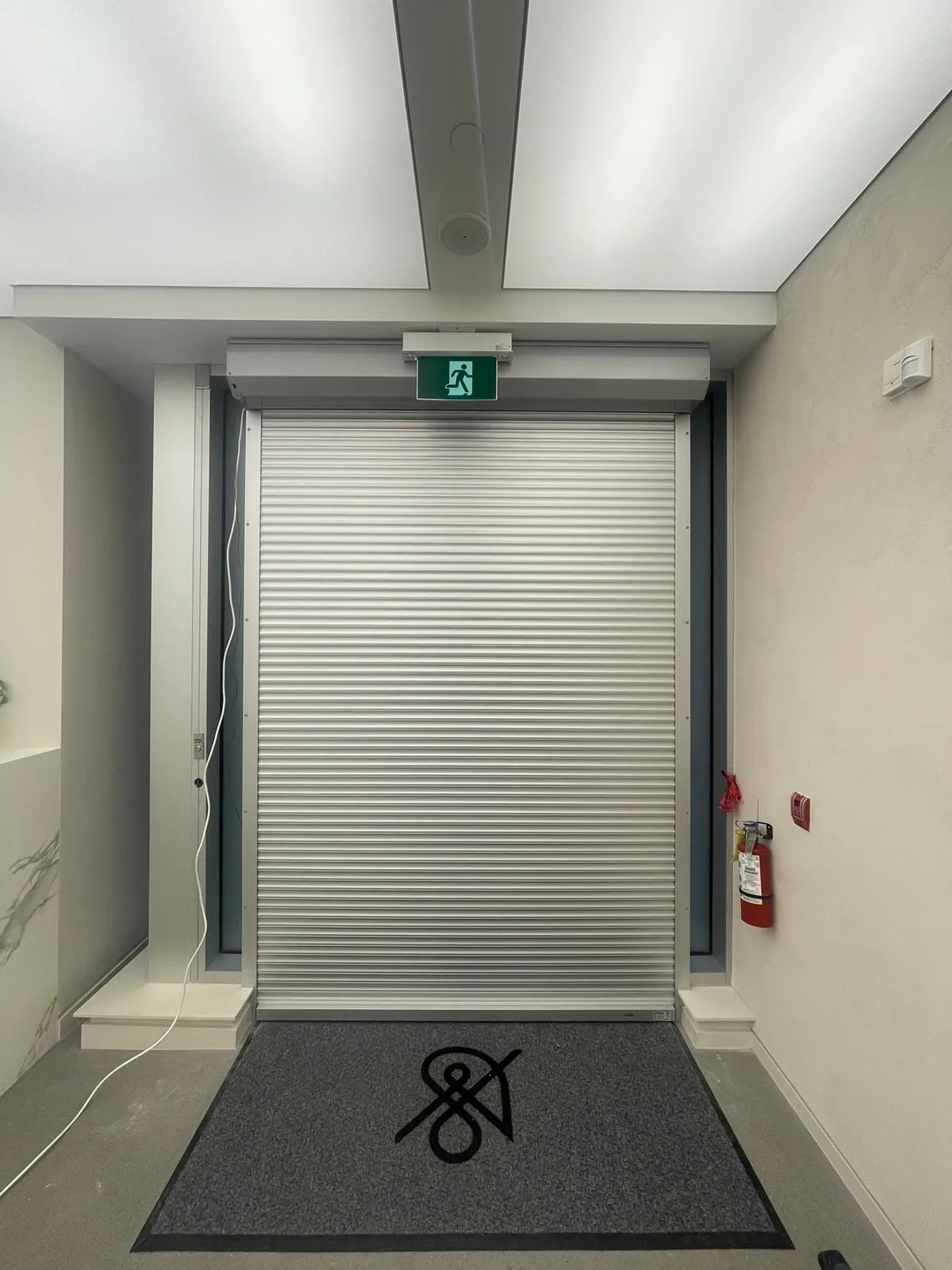

Architectural Security

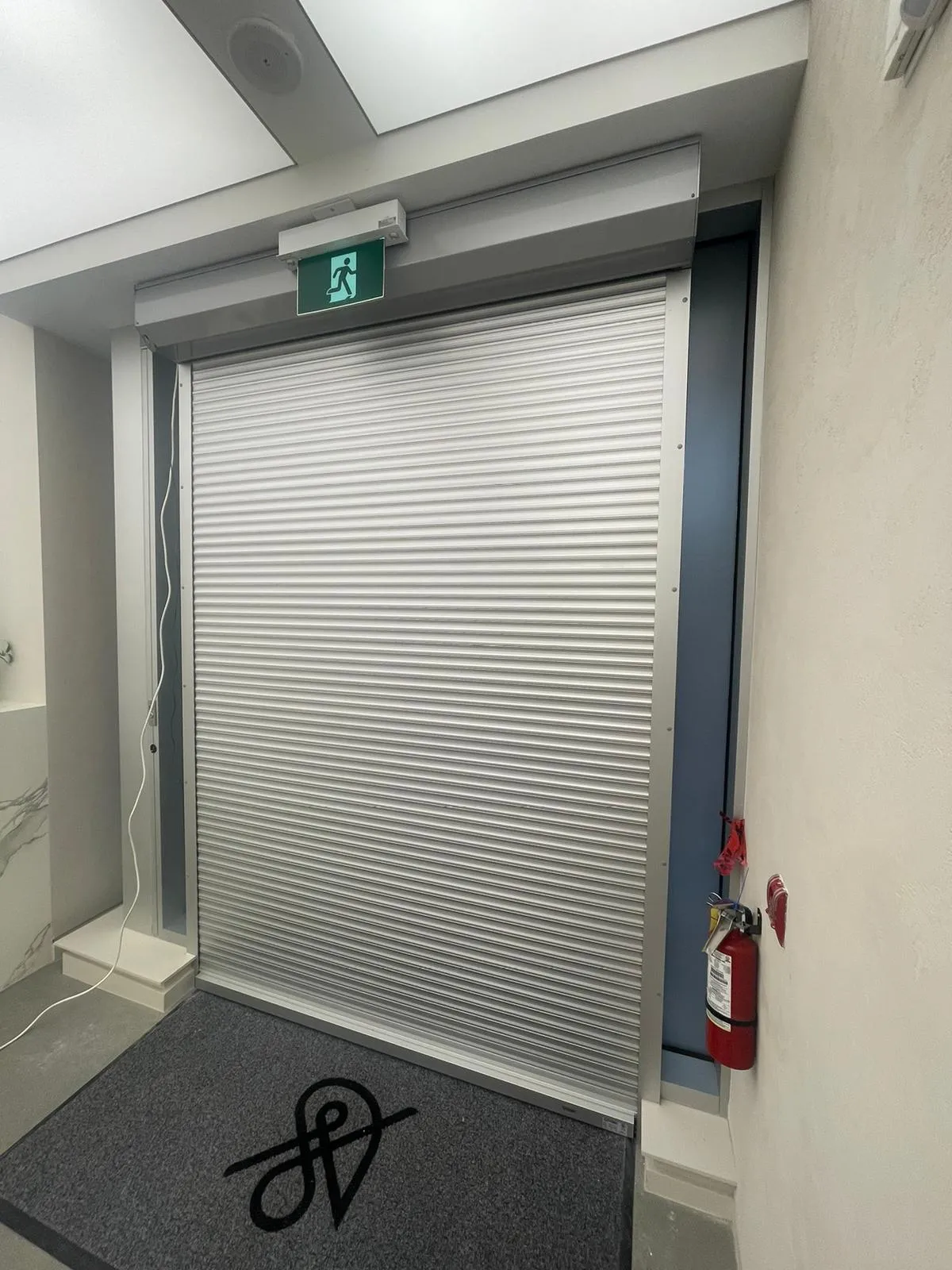

High-Visibility Security

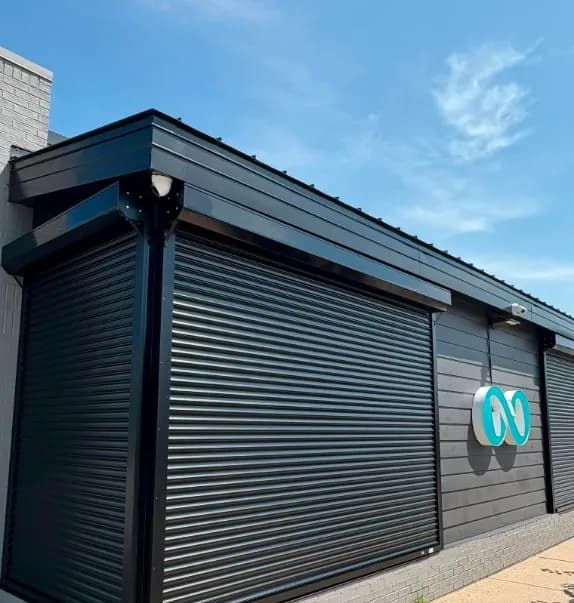

Secure Entryway

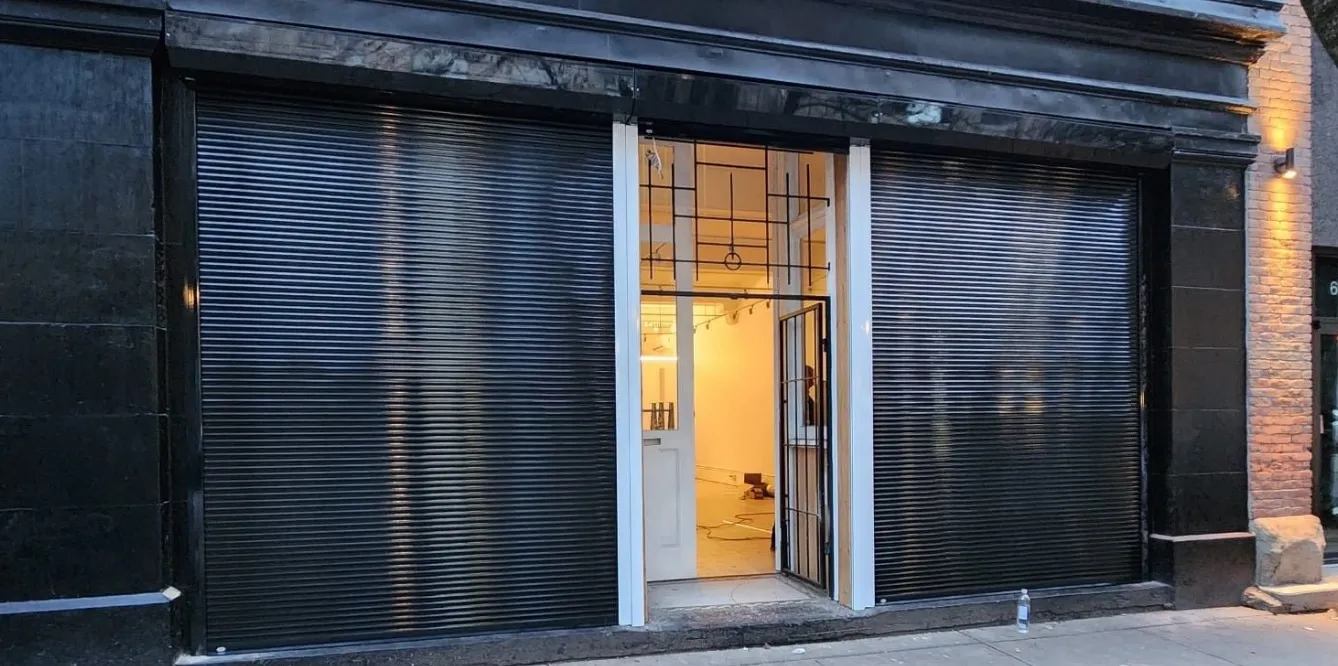

Institutional Shutter

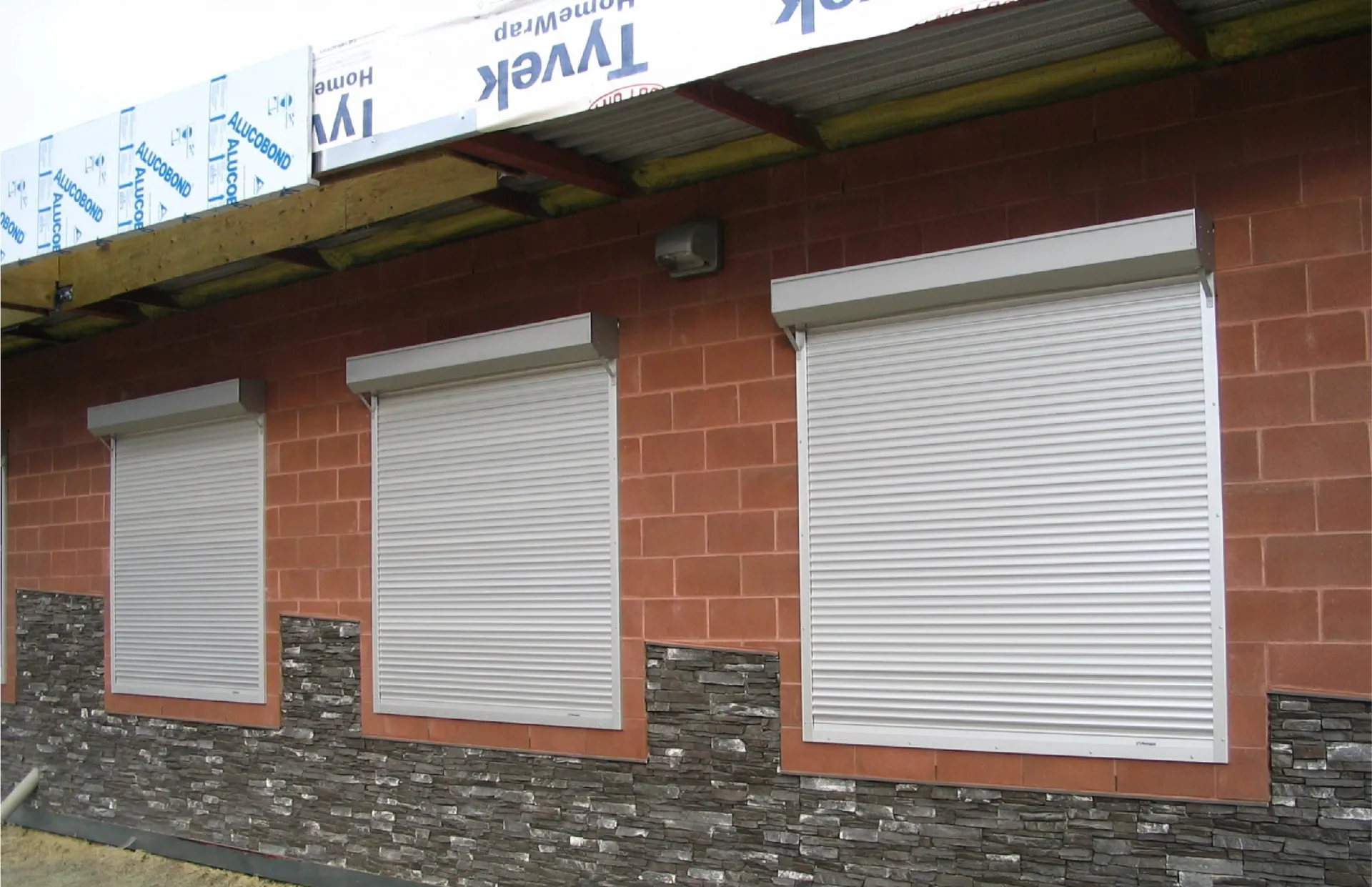

New Build Integration
Specialized Branding & Graphics
Don't let security compromise your retail identity. Our shutters can be custom laser-printed with high-resolution graphics, allowing your brand to remain visible even when the facility is closed.

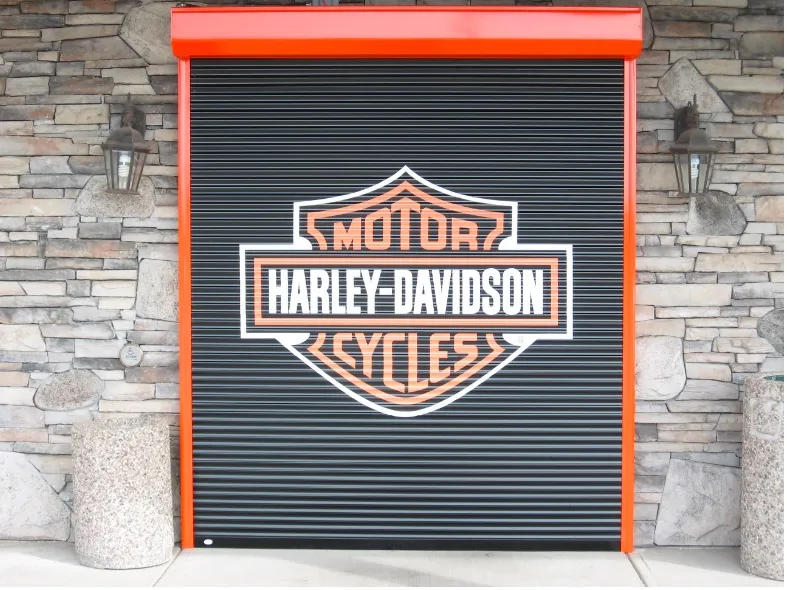

Custom Laser Graphics

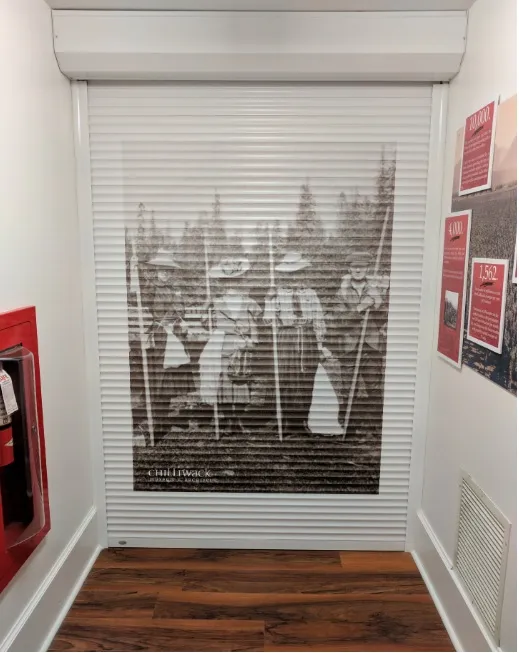

Architectural Branding

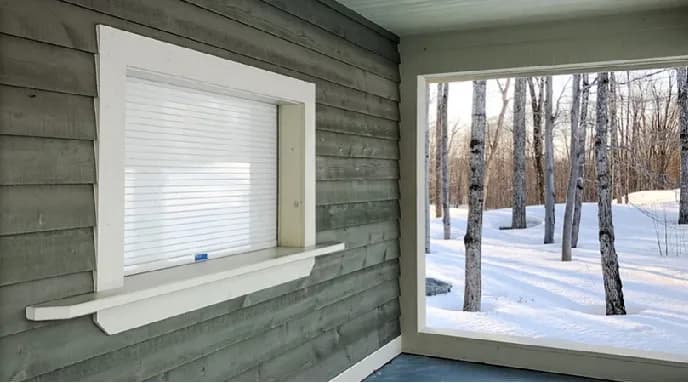

Concession Shutter

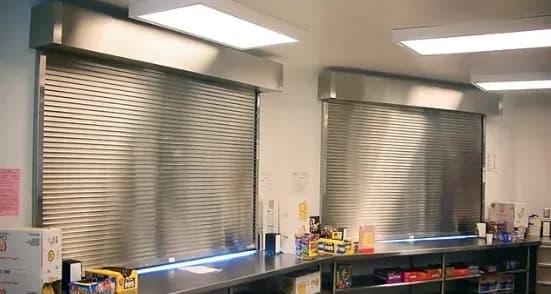

Food Service Security

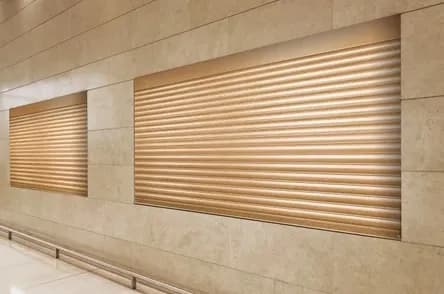

Wood-Look Finish

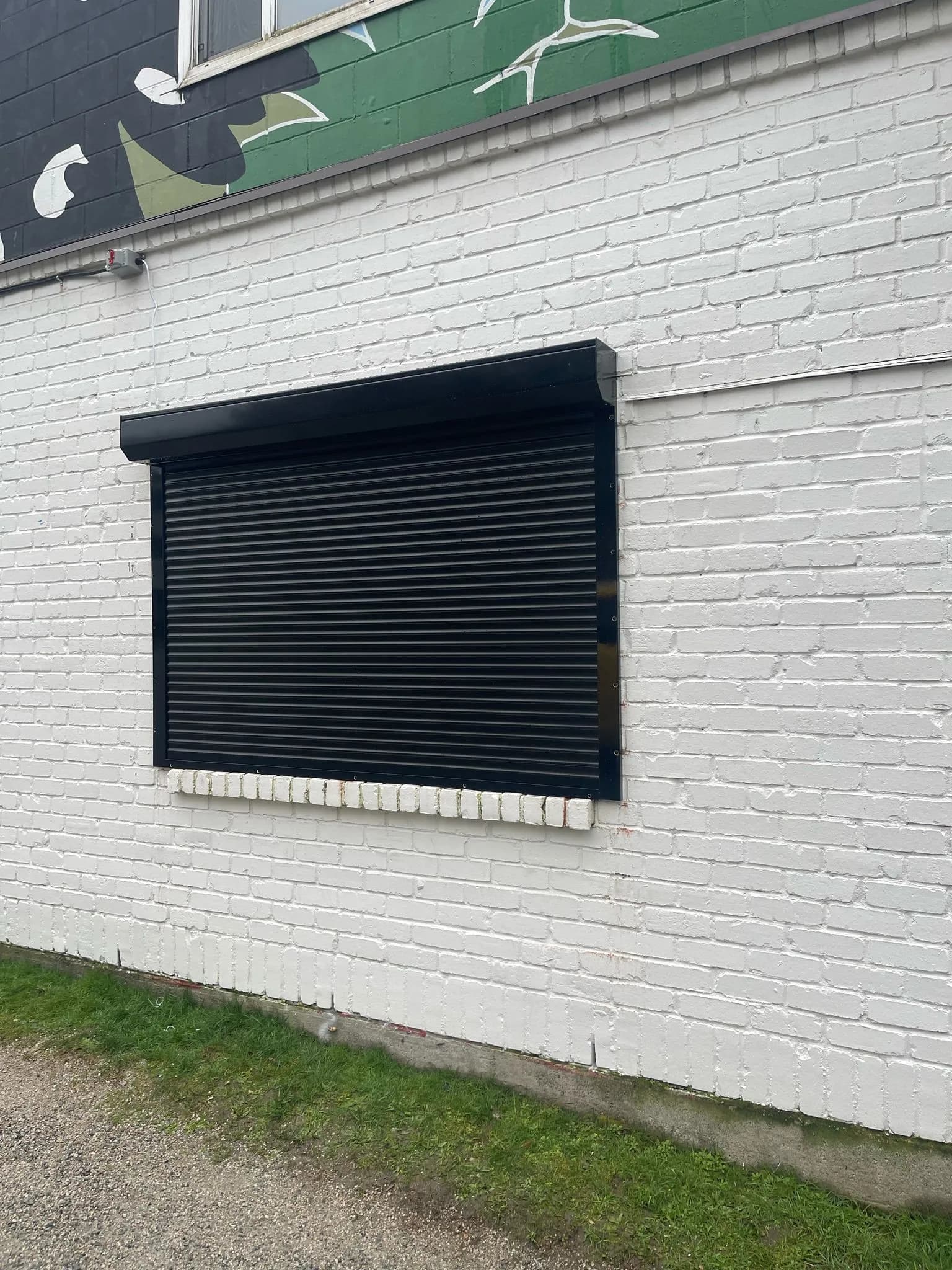

Precision Window Mount

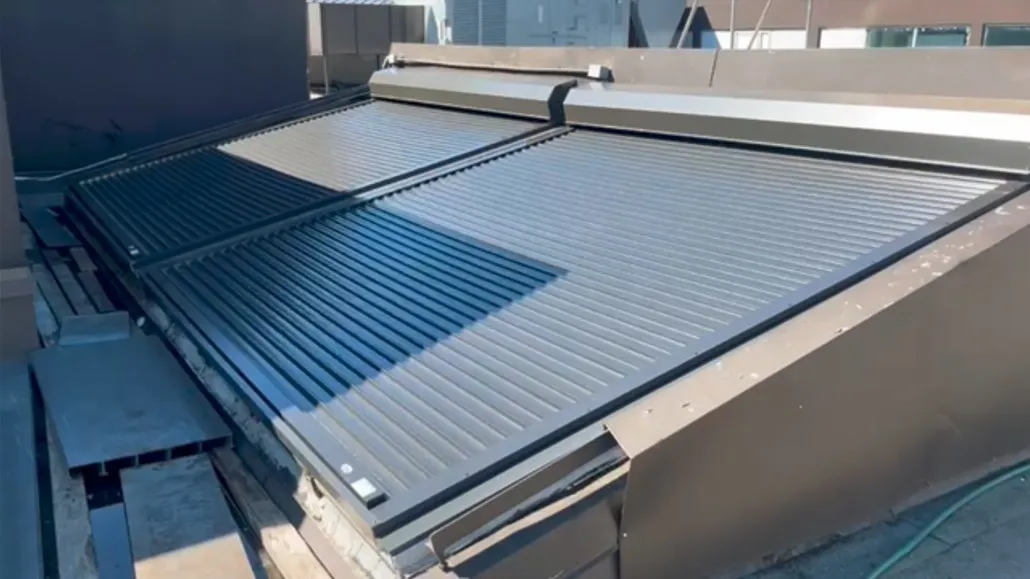

Skylight Protection

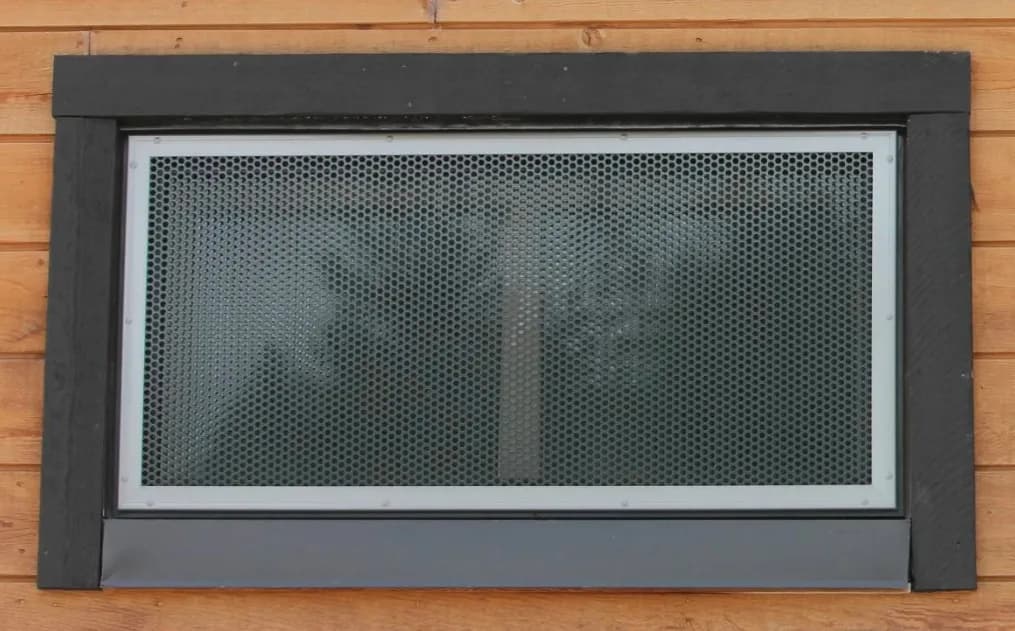

Vanguard High-Impact Panel

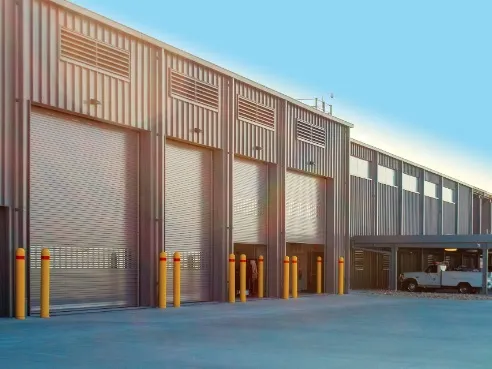

Overhead Door Integration

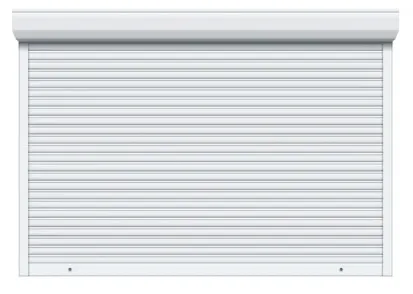

Standard Rolling Profile
Counter-Top Security

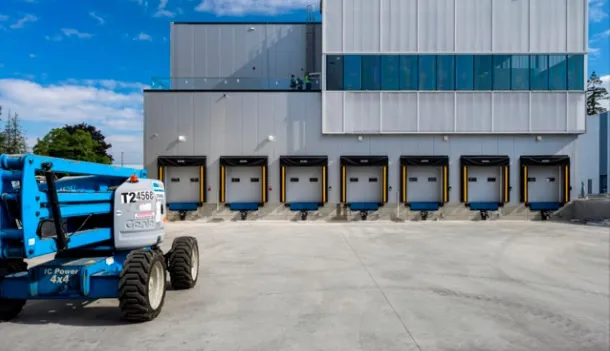

Sectional Door Coordination
